Brand: TSTY
Series: ESS Container
Application: all-in-one container solution integrates PCS, EMS, BMS, cooling and fire suppression systems, AC combiner cabinet, and other essential components.

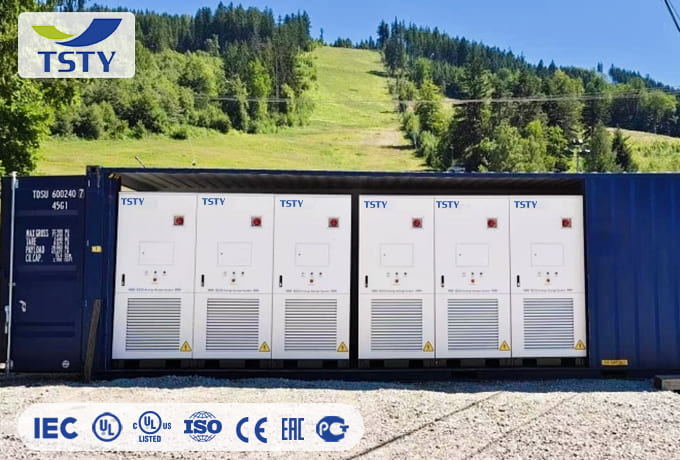

TSTY's innovative 400 V all-in-one container solution integrates PCS, EMS, BMS, cooling and fire suppression systems, AC combiner cabinet, and other essential components. The highly integrated system, combined with high-quality 314 Ah battery cells, delivers higher energy density in a compact footprint. Its efficient hybrid cooling system ensures stable operation, keeping cell temperature differences within 3 ℃. Designed in a standard 20 ft container, the solution allows easy transportation, rapid installation, and flexible deployment, making it suitable for a wide range of commercial, industrial, and utility-scale energy storage applications.
|
DC Side |
|
|
CellType |
LFP/314 Ah |
|
Pack Configuration |
48.2kWh/1P48S |
|
System Configuration |
2170 KWh/9P240S |
|
Rated DC Voltage |
768V |
|
DC Voltage Range |
672～864V |
|
Max.Charge/Discharge Rate |
0.5P |
|
Max.Depth of Discharge |
100%(25±2℃) |
|
AC Side |
|
|
Rated Output Power |
1000 kW |
|
Max.Apparent Power |
1100 KVA |
|
Rated AC Voltage |
400V ±15% |
|
AC Voltage Range |
±15% |
|
Grid Type |
3W+N+PE |
|
Rated Frequency |
50Hz/60Hz |
|
Power Factor |
0.991-1～+1 |
|
THDi |
≤3% |
|
DC Ratio |
<0.5%Ipn |
|
General |
|
|
Round Trip Efficiency |
≥87% |
|
CycleLife |
≥8,000 cycles |
|
Communication |
Modbus TCP/IP |
|
Fire Suppression System |
Aerosol system(pack leveland container level),water spray system |
|
Ingress Rating |
IP54 |
|
Cooling |
Liquid cooling+Forced air cooling |
|
Operating Temperature |
-25°℃~55℃(Derating after45℃) |
|
Anticorrosion Rating |
C4(C5 optional) |
|
Humidity |
5~95%RH(non-condensing) |
|
Noise |
≤80 dB |
|
Altitude |
4000m(Derating above 2000m) |
|
Dimensions(W*D*H) |
6,058*2,438*2,591mm |
|
Weight |
28 t |
|
Certification |
UN38.3,IEC62477-1,CE/EMC,IEC62619,IEC63056,UL9540A,IEC62933 EN50549 |
1.Hybrid Cooling System: The liquid-cooled battery system, paired with air-cooled PCS system, provides dual assurance for optimal efficiency and outstanding performance.
2.All-in-One Design:Highly integrated 3S system, cooling system, and fire protection system, delivering greater capacity within a smaller footprint.
3.String-Based Solution:Each battery cluster is independently managed,enhancing system reliability and stability.
4.Standard 20ft Container:Pre-tested and pre-installed before delivery, enabling easy transportation, simple commissioning, and shorter lead times.
