Brand: TSTY
Capacity: 418kWh Liquid-cooled Battery Cabinet
Series: Energy Storage System
Application: all-in-one container solution integrates PCS, EMS, BMS, cooling and fire suppression systems, AC combiner cabinet, and other essential components.

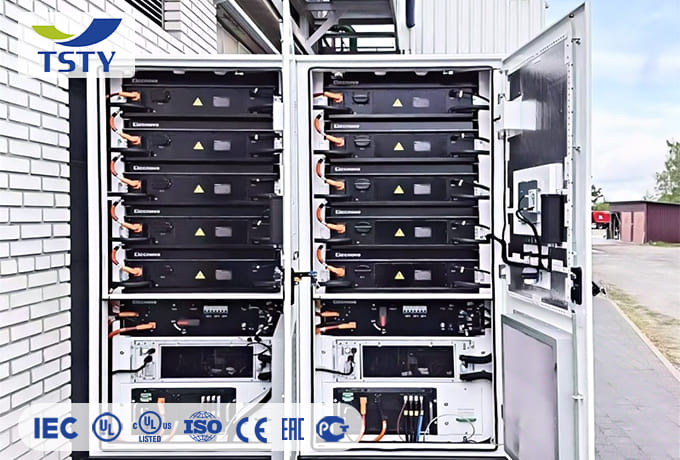

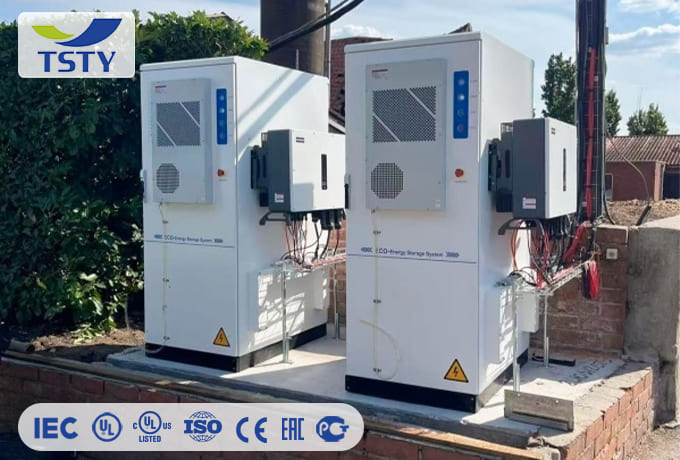

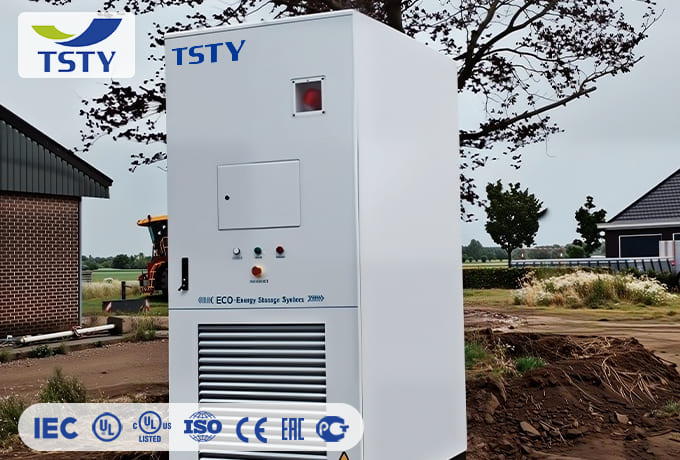

The 418kWh Liquid-cooled Battery Cabinet is a free-standing battery cabinet featuring pack-level liquid cooling and cell-level temperature balancing. It maintains temperature differences within 3 °C between cells,enhancing temperature consistency and extending battery life.Its modular design offers flexible parallel configurations and can be paired with a centralized PCS to create a complete ESS solution that delivers higher energy density and significantly improves cost-effectiveness.
| Item | |
| Cell Type | LFP/314Ah |
| Pack Configuration | 52.248 kWh/1P52S |
| System Configuration | 418kWh/1P416S |
| Rated DC Voltage | 1331.2V |
| DC Voltage Range | 1164.8～1497.6V |
| Max.Charge/Discharge Rate | 0.5P |
| Max.Depth of Discharge | 100%(25±2℃) |
| Cycle Life | ≥8,000 cycles |
| Communication | Modbus TCP/IP |
| Fire Suppression System | Aerosol |
| Ingress Rating | IP55 |
| Cooling | Liquid cooling |
| Operating Temperature | -25℃~55℃(Deratingafter45℃) |
| Anticorrosion Rating | C4(C5 optional) |
| Humidity | 0~95%RH(non-condensing) |
| Altitude | 4500m |
| Dimensions(W*D*H) | 1,300*1,300*2,400 mm |
| Weight | 3,700 kg |
| Certification | UN38.3,IEC62477-1,IEC61000,IEC62619,IEC63056 |
1. Compact：1.7㎡ footprint only, easy transportation & fast installation.

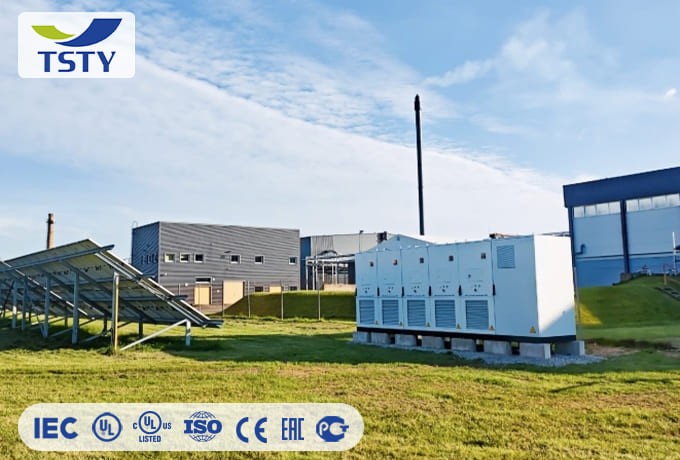

2. High Integration：Multiple units connected in parallel achieve MV/HV connection with PCS-boost containers.
3. Efficient Cooling：Optimal in-PACK duct design, achieve high-efficient cooling and low energy consumption.
4. Long Cycle Life：Over 8,000 times cycle life, excellent performance of battery system.
5. Flexible Expansion：Support seamless cabinets combination and flexible grid access.
6. Ultimate Safety：In-PACK fire warning and protection with aerosol, prevent heat diffusion and runaway.
