YB Preinstalled Type Transformer Substation

TSTY Electric Co., Ltd.

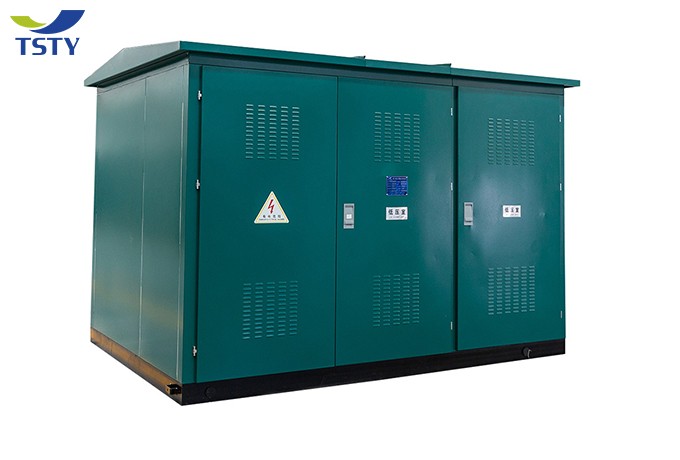

Box transformer is a power product that combines high and low voltage cabinets and transformers. Our box transformers can be designed according to the actual needs of customers. For example, the number of inlet and outlet lines of the high-voltage ring main cabinet, the number of inlet and outlet lines of the low-voltage cabinet, the inlet and outlet line methods, etc., we can customize the design according to the actual needs of customers. Box transformers are generally used outdoors and have excellent dust and water resistance. Our box transformers are exported to many customers in Africa and can meet the EEU standard of Ethiopia. This standard has very high requirements for box transformers, but the box transformers purchased by our customers can pass the inspection of the Ethiopian Electricity Authority and be successfully installed and used.

Technical Parameter:

No.	Items		Unit	Value
		Primary	KV	40.5
		Secon dary	KV	12; 0.69
1	Rated voltage	Subsidiary circuit	V	110; 220; 380
		High voltage circuit		400~1250
2	Rated current	Low voltage circuit	A	630~3150
3	Rated frequency		Hz	50
4	Rated power		kVA	1250; 1600; 2000~20000
		Power freque ncy		95
		High voltage side impact		185
		Power frequency		42
5	Rated insulation level	Low voltage side impact	kV	75
		High voltage side		20; 25; 31.5
6	Rated short time withstand current	Low voltage side		25; 31.5; 40
		High voltage side		50; 63; 80
7	Rated peak withstand current	Low voltage side	kA	63; 80; 100
		Power frequency		65
8	Insulation level of transformer	Impact		185
9	Insulation level of subsidiary circuit		kV	2
