Photovoltaic Energy Storage Boost Integrated Machine

The American-style integrated energy storage converter and booster is a highly integrated energy conversion and management system designed to efficiently store green power, such as solar and wind power. When needed, it is converted to AC power by a power storage converter (PCS). The voltage is then stepped up via a three-phase oil-immersed step-up transformer for stable transmission to the grid. This equipment effectively mitigates the intermittent and fluctuating nature of renewable energy generation, such as wind and photovoltaic power, improving energy efficiency and grid stability.

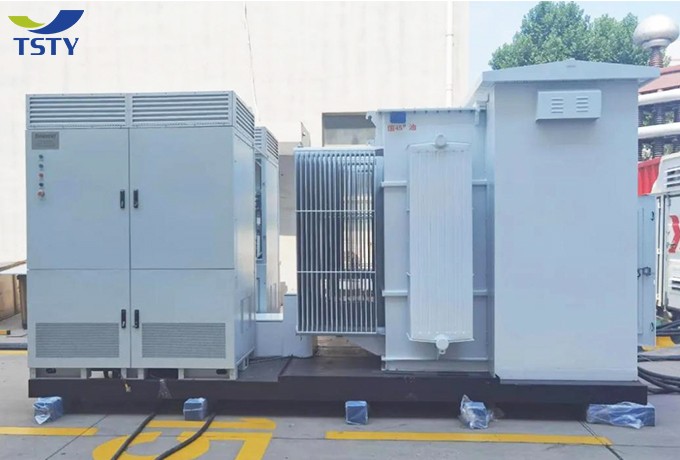

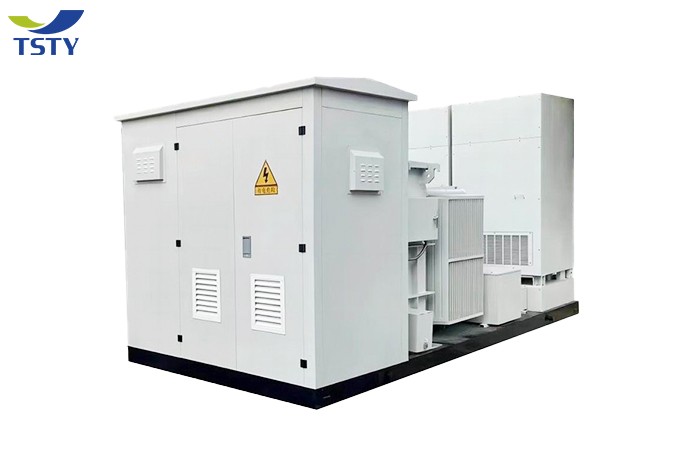

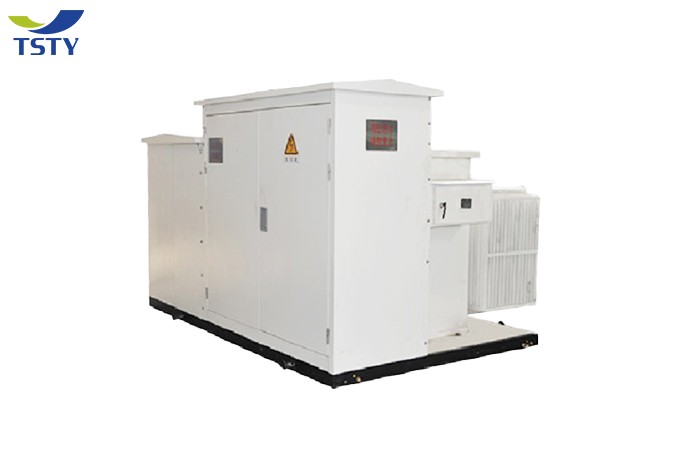

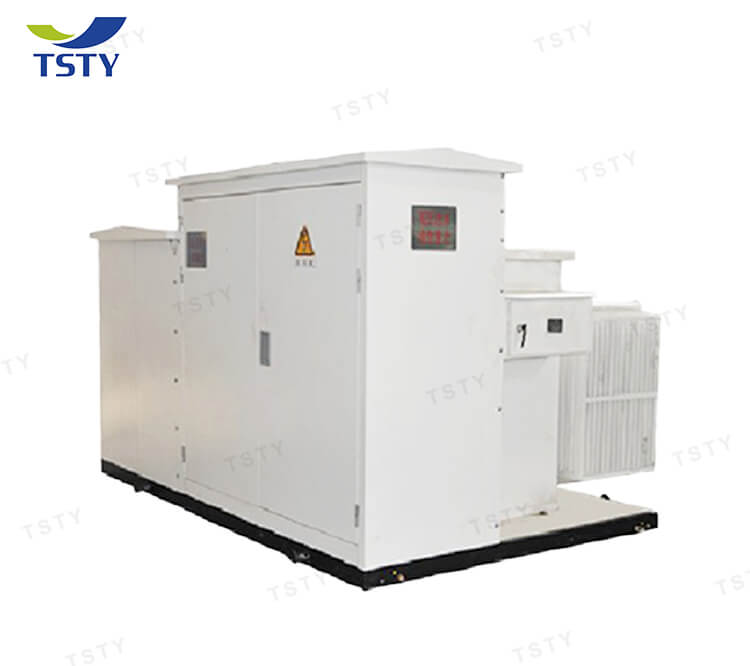

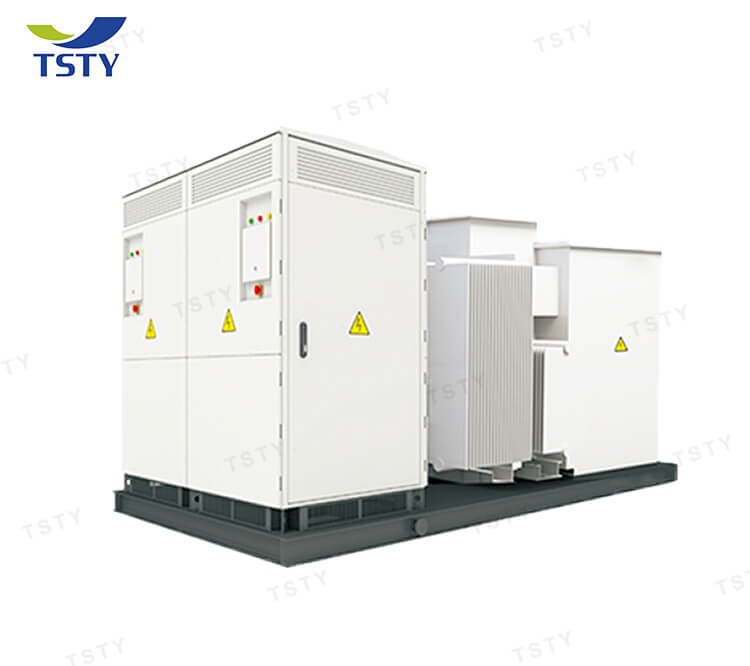

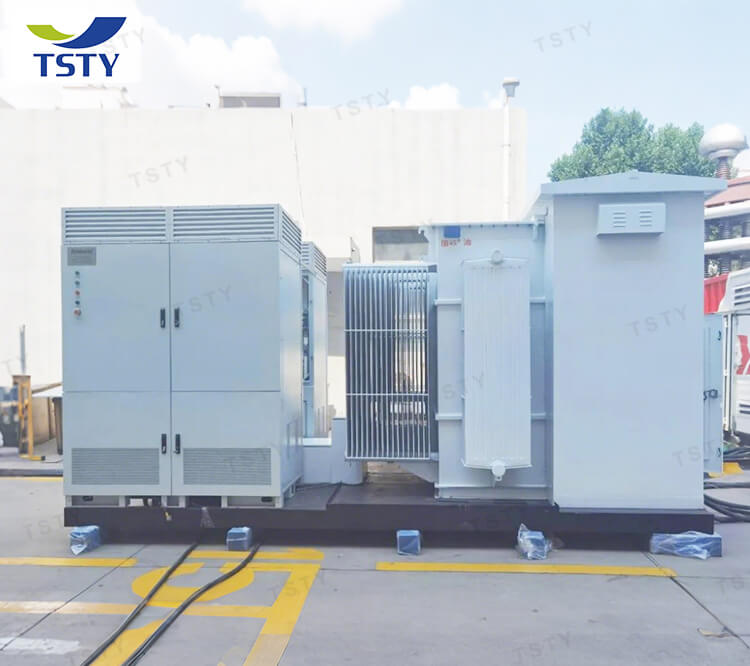

The unit integrates an energy storage converter, busbar bridge, low-voltage compartment (including communications and power distribution), oil-immersed transformer (with integrated oil-immersed load switches and full-range fuses), high-voltage cable compartment, and protective enclosure. All manufacturing, assembly, wiring, and commissioning are completed in the factory, and the unit is shipped to the project site in a modular container, greatly simplifying project implementation.

1. The unit's compact design and small footprint significantly reduce capital construction costs and installation workload, shortening the construction cycle and enabling rapid commissioning. 2. Complete factory assembly and commissioning simplify on-site connection, significantly reducing construction time and simplifies operation and maintenance, supporting unmanned operation.
3. Utilizes an oil-immersed transformer for excellent heat dissipation, low operating noise, and high cost-effectiveness, suitable for long-term continuous operation.

4. Equipped with a combined oil-immersed load switch and full-range fuse protection solution, it offers reliable operation, easy maintenance, and high system safety.
5. The housing undergoes special anti-corrosion, UV protection, and sand-proofing treatments, effectively resisting wind and sand erosion and adverse weather conditions, extending the life of the equipment.

Main Operating Conditions:

Ambient Temperature: -40°C to +45°C

Altitude: ≤4500m (customization required for altitudes above 2000m)

Outdoor Wind Speed: ≤35m/s

Pollution Degree: II, III, IV

Seismic Fortification: 8°C
