Brand:TSTY
Series: Energy Storage System
Application: An energy storage system is an intelligent energy management platform that can store electrical energy and release it when needed.

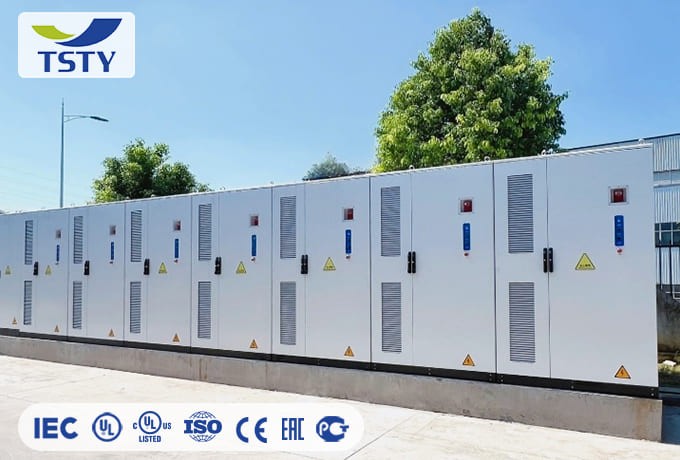

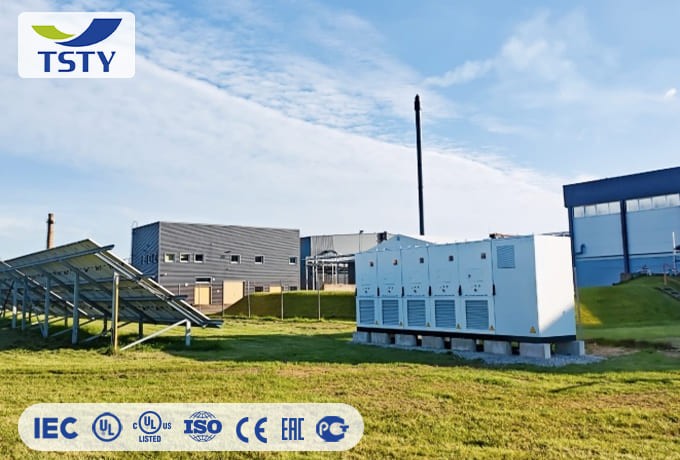

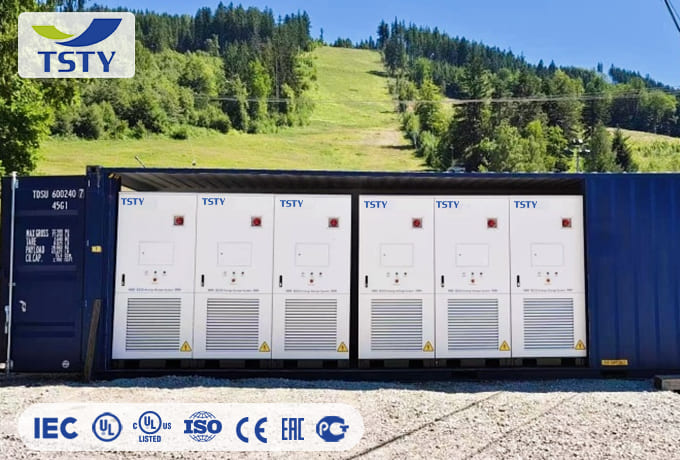

The 5.015MWh Liquid-cooled Battery Container integrates PACK, EMS, BMS, HVAC, and fire suppression system (FSS) into a single container. Designed for demanding applications, the 20-ft liquid-cooled ESS container is suitable for power generation, grid,and commercial & industrial (C&I) ESS scenarios that require high power and flexible capacity.
| Item | |
| Cell Type | LFP314 Ah |
| Pack Configuration | 104.5kWh/1P104S |
| System Configuration | 5.015MWh/12P416S |
| Rated DC Voltage | 1331.2V |
| DC Voltage Range | 1165～1498V |
| Max.Charge/Discharge Rate | 0.5P |
| Max.Depth of Discharge | 100%(25±2℃) |
| Cycle Life | ≥8,000 cycles |
| Fire Suppression System | Aerosolsystem(pack level and container level),water spray system |
| Ingress Rating | IP55 |
| Cooling | Liquid cooling+Forced air cooling |
| Operating Temperature | -25℃~55℃(Derating after 45℃) |
| Anticorrosion Rating | C4(C5optional) |
| Humidity | 0~95%RH(non-condensing) |
| Altitude | 4000m |
| Dimensions(W*D*H) | 6,058*2,438*2,896 mm |
| Weight | 45t |
| Certification | IEC62477,IEC61000,IEC62619,IEC63056,UL9540A,UN3536 |
1. Higher Energy Density:The 20-ft liquid-cooled energy storage container overs a maximum capacity of 5.015 MWh, delivering higher energy density and reducing overall costs.
2.Lower Self Power Consumption:A variable-frequency compressor adapts to temperature conditions, reducing the system’s power consumption.
3. Lower Operating Noise:Minimized fan usage significantly reduces operating noise compared to air-cooled solutions.
4. Longer Service Life:Enhanced cell temperature consistency extends battery life, increases safety, and improves return on investment.
5. Better Temperature Control:The liquid cooling system maintains cell temperature differences below 3°C, improving voltage consistency and overall performance.
6. Higher Protection:The container features an IP55-rated enclosure (PACK IP65), up to C5 corrosion protection, and high/low-temperature design for robust environmental resistance.
