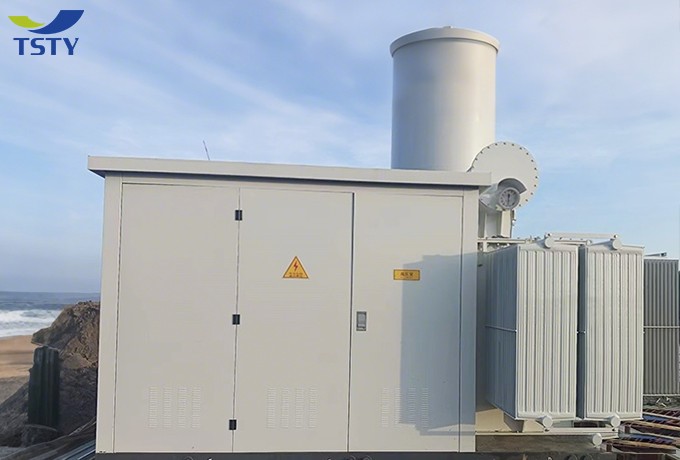

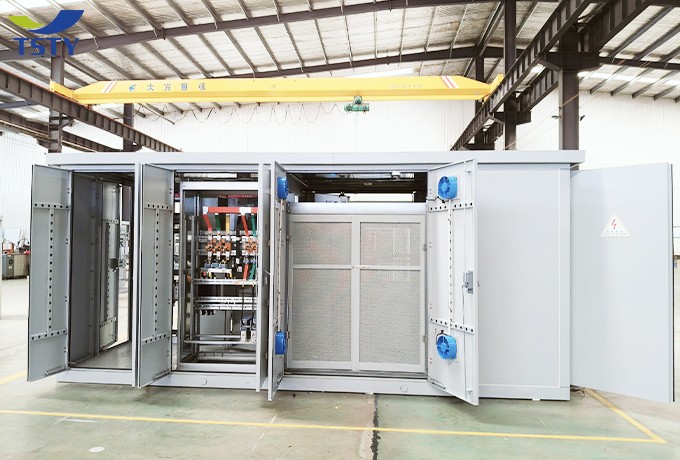

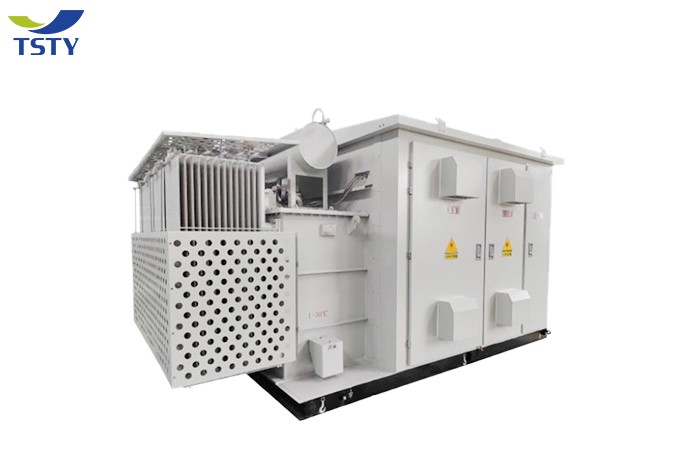

Substation For Wind and Solar Energy

The YBF Series Wind/Solar Substation is a high-efficiency power conversion device specifically designed for wind and solar power generation systems. It steps up the low-voltage power (0.6-0.69kV) generated by wind turbines or photovoltaic panels to 10kV or 35kV and delivers it stably to the grid. Utilizing advanced electrostatic spraying technology and an intelligent control system, it operates reliably in harsh environments, offering excellent protection against windblown sand, salt spray, rain, and snow. It is widely used in wind power, photovoltaic, and other renewable energy generation fields.

Performance Features

1. Excellent sealing performance, resistant to wind, sand, salt spray, rain, and snow.

2. Advanced electrospray coating technology ensures the housing is resistant to rust and discoloration.

3. The housing is highly adaptable to various environments and can be selected to suit different environments. Its aesthetic design harmonizes with the wind conditions.

4. Intelligent control enables both local control and remote monitoring, realizing four remote control functions.

5. Natural ventilation. The box-type transformer is equipped with sufficient natural ventilation and thermal insulation. When the ambient temperature approaches 40°C, forced ventilation is activated to ensure the normal operation of the step-up transformer.

Application Scope

The YBF series wind-solar hybrid substation is widely used in renewable energy generation applications such as wind farms and photovoltaic power plants. It efficiently boosts low-voltage power to 10kV or 35kV for grid-connected output. It can adapt to various complex environmental conditions, ensuring stable operation and efficient utilization of the power system.
